Dynatect produces customized roll-up door systems including all components and metalwork. A common application is robotic welding cells or other automated assembly. These doors are used in robotic welding and automated manufacturing in the aerospace, machine tool, and automotive industry. Dynatect’s industrial roll-up doors are generally suitable for light-duty or indirect machine tool applications with light/moderate coolant spray and no direct heavy chip loads. Click here to view laser protection roll up door applications.

Request a Quote Download Specs

Door Options

Configurable Doors

Within powered doors, Dynatect has 5 configurable product offerings that vary by geometry and technologies. The 5 configurable products are summarized on the Door Comparison tab.

Because these are used across multiple applications and industries, they are also featured on their own web pages (linked below):

Low Speed Door Family (up to 12”/sec)

These basic 12 or 24VDC doors include one controller style and door position sensors

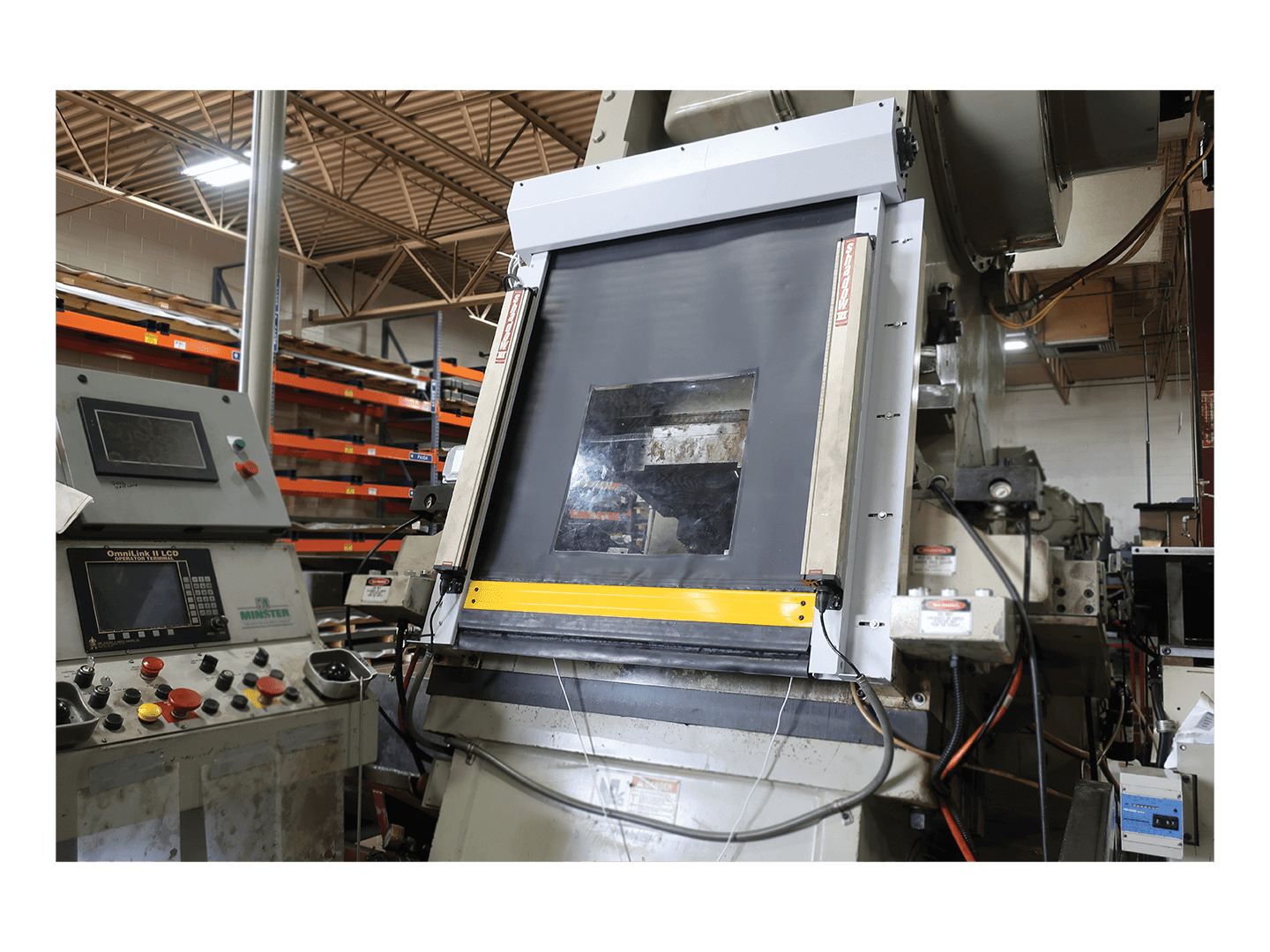

High-Speed Door Family (up to 44”/sec)

These premium 3-phase AC powered doors include several optional controls, safety interlocks (up to PLe Cat-4), door position sensors, and LIDAR safety scanning

Engineered to Order Doors:

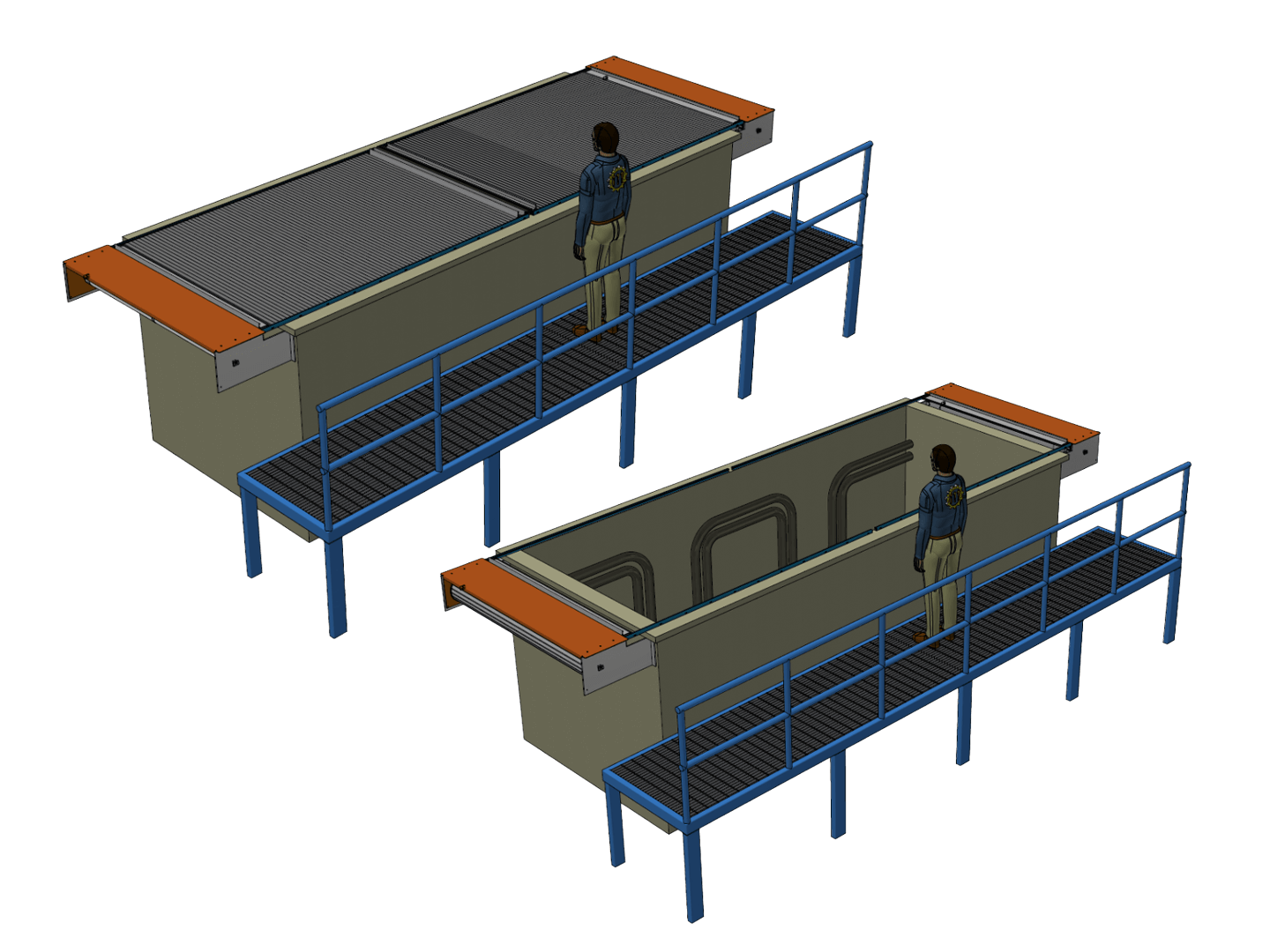

Example Styles:

Motorized options
Manual roll-up options (including spring roller or scroll take-up)
Fabric, metal, plastic doors – with and without windows
Horizontal, vertical, or bi-parting orientation

Quote Request

Low Speed Door Family (up to 12”/sec)

These metal-slatted power roll up doors are applied to horizontal, vertical, or breadbox / bed cover applications

Dynatect also refers to these as “Powered Roll-Up Doors”

industrial low-speed machine doors

Example Applications

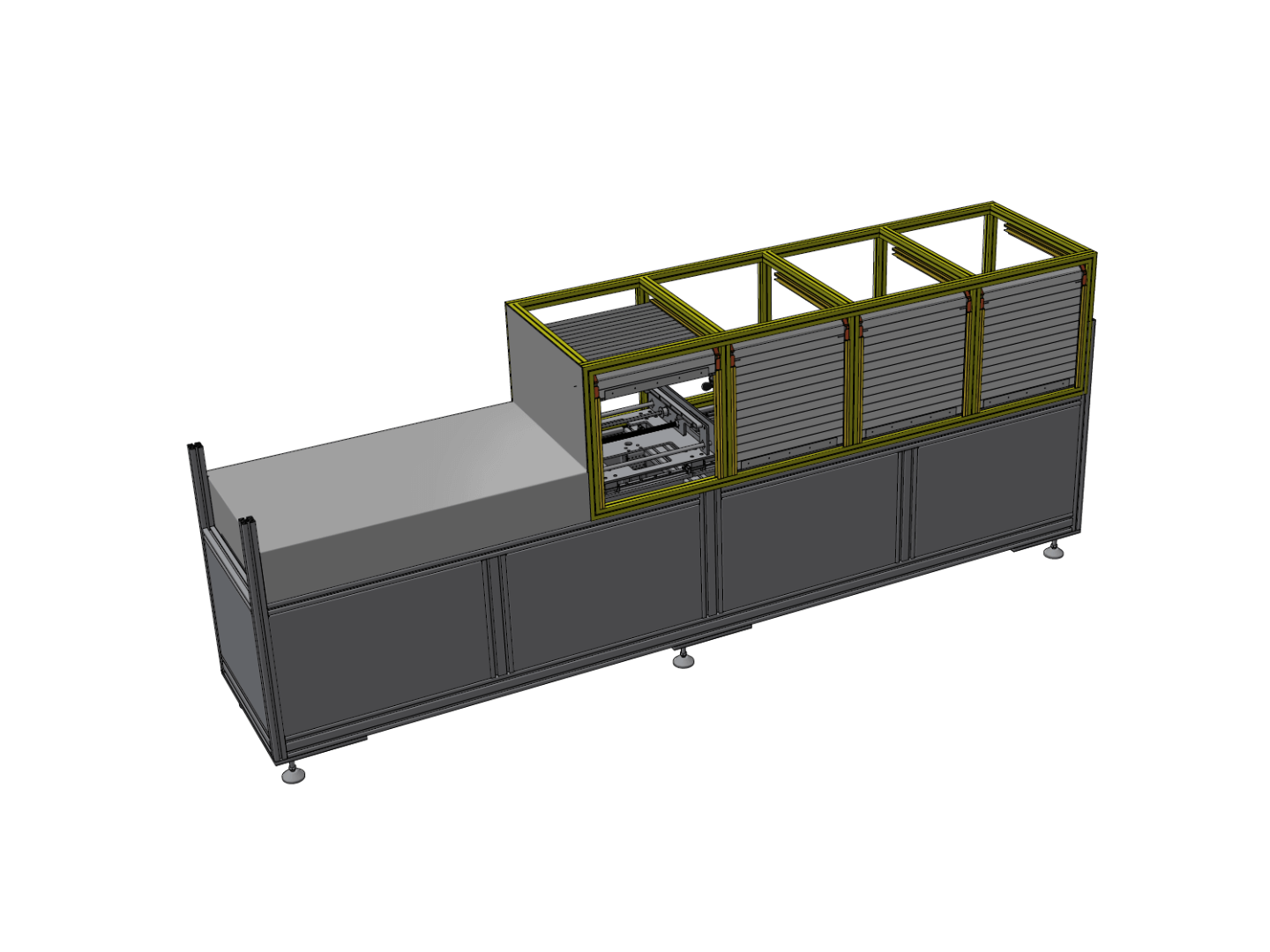

Motorized storage covers, robotic cells, chemical tank covers, partial fume containment, industrial testing apparatus, entertainment venues, specialized trailers, multi door processes, room enclosures, roof covers, and more!
These can be applied to a wide variety of industrial, commercial, automation, aerospace, trailer, shipping container, and off-highway applications
These are also applied in vehicle applications
- Vehicle info / videos: Powered Roll-Up Vehicle Doors
- Vehicle product manual: Installation Guide

Specifications

Sizes: (h x w) 1′ x 1.5′ to 9′ x 9′ (0.35m x 0.46m to 2.74m x2.74m)
Speeds from 8”-12” per second dependent on door size
Mounting: These are not freestanding doors, but are intended to be mounted to an existing frame/structure. Dynatect can quote custom frames and mounting feet per application needs
Included controller:
- 12VDC or 24VDC powered
- Typical current consumption <10 amps
- Hardwire I/O (door open / door-close)
- 2 Modes of Door Motion
  - Full Travel Door Movement – The door will move to full-open or full-close after the corresponding input signal is momentarily applied (pulse)
  - Discrete Door Movement – The door will only move while an input signal is applied; when the input signal is released the door will stop moving
- FOB RF remote control
- 3 simultaneous modes of motion control
  - Hardwire door sensors for open and close
  - Overcurrent sensing for obstruction detection and auto-reverse
  - Door travel time-out limits
- No network connectivity
Included motor:
- Speeds from 8”-12” per second dependent on door size
- Heat management to support up to (6) open/close cycles every minute (subject to speed and size)
- Inline motor/gearbox mounted in door rollup tube eliminating the interference of right-angle gearboxes and motors
- Positively driven open and close combined with braked motor for auto locking position
- Anti-pinch cover shrouds the drive mechanism
Included end-of-travel sensors:
- (1) Door Open proximity sensor
- (1) Door Closed proximity sensor
- Mounted in door header, eliminating need for wiring down the door leg
- Mounting locations for installer-provided door sensors are available as an option
Manual bypass:
- Standard interior manual door release if power is lost
- Optional manual release from outside the compartment via keyed interface

Life Cycles

Designed for operating environments -40° F to +140° F
Lifetime cycles from 6k to 200k (dependent on door size)
The Powered Roll-Up Door life cycle is highly dependent on the total square footage of the door (see table)

Orientation	Vertical	Horizontal	Breadbox
Up to 44 SqFt	200k	200k	100k
>44-64 SqFt	20k	20k	20k
>64-81 SqFt	6k	6k	NA

Exploded view of Low Speed Multi-Axis Doors (Powered Roll Up Doors) – Vertical Configuration

Diagram showing parts of a rolling door: top rail, powered header, side rails, rib assembly shade, and sill plate.

horizontal rud diagram

Quote Request

Horizontal or Vertical:

Online
PDF

Breadbox:

Online
PDF

Door Comparison

Dynatect has many technologies, both custom engineered and configurable offerings that can meet specific application needs. This table compares some of the differences among the configurable offerings:

		Vertical Power Roll-Up Door	Horizontal Power Roll-Up Door	Breadbox Motorized Bed Cover	Vertical VF Door	Vertical Laser Door
	Door Material	Metal Slatted	Metal Slatted	Metal Slatted	Fabric	Metal Slatted
	Door Rail Engagement	Endcap Gliders	Endcap Gliders	Endcap Gliders	Rollers	Rollers
	Freestanding	No	No	No	Yes	Yes
	Min Height/Length (Ft)	1	1	2	2	2
	Min Width (Ft)	1.5	1.5	1.5	2	2
	Max Height/Length (Ft)	12	12	12	16	10
	Max Width (Ft)	9	6 (no load)	6 (no load)	16	12
	Voltages Available	12 or 24VDC	12 or 24VDC	12 or 24VDC	240, 480, or 575 VAC	240, 480, or 575 VAC
	Standard Pushbutton Operation	FOB Remote Only	FOB Remote Only	FOB Remote Only	Up/Down/Estop on Controller Enclosure	Up/Down/Estop on Controller Enclosure
	Accepts External Open/Close Signals	Yes, Dry Contact	Yes, Dry Contact	Yes, Dry Contact	Yes, Dry Contact	Yes, Dry Contact
	Controller Type	Custom Potted	Custom Potted	Custom Potted	Mitsubishi VFD	Mitsubishi VFD
	Controller UL/CUL Listing	No	No	No	Yes	Yes
	Network Connectivity	None	None	None	RS485 Modbus/RTU	RS485 Modbus/RTU
	Motor Speed	Fixed	Fixed	Fixed	Variable	Variable
	Door Status Output	None	None	None	Dry Contact	Dry Contact
	End-Of-Travel Sensing	Prox Switch	Prox Switch	Prox Switch	Prox Switch	Prox Switch
	Std Interference Sensing	Time/Current	Time/Current	Time/Current	None	None
Standard Speed (inches/sec)	Up to 44 SqFt	12	12	10	44	20
	>44-64 SqFt	8	8	8	44	20
	>64-81 SqFt	8	8	NA	44	20
	>81-256 SqFt	NA	NA	NA	44	20
Life Cycles to Maintenance	Up to 44 SqFt	200k	200k	100k	1M+	1M+
	>44-64 SqFt	20k	20k	20k	1M+	1M+
	>64-81 SqFt	6k	6k	NA	1M+	1M+
	>81-256 SqFt	NA	NA	NA	1M+	1M+
	First Maintenance Item	Motor & Drive Tube	Motor & Drive Tube	Motor & Drive Tube	Rollers	Rollers
	Second Maintenance Item	Ribs Slats (1M cyc)	Ribs Slats (1M cyc)	Ribs Slats (1M cyc)	Brake Gap (1M cyc)	Brake Gap (1M cyc)
Options	Photoeye /LiDAR interference sensing	No	No	No	Yes	Yes
	Window Size	Multiple 1"h x (Slat width less 12")	Multiple 1"h x (Slat width less 12")	Multiple 1"h x (Slat width less 12")	Multiple 18"h x 18"w	None
	Windows Material	Plexiglass	Plexiglass	Plexiglass	Vinyl	None
	Weld Tint Window	No	No	No	Yes	No
	Door Brush	No	No	No	Yes	Yes
	Safety Rated Interlock Switch	No	No	No	Yes	Yes
	Safety Rated LiDar	No	No	No	Yes	Yes
	Passive Block	No	No	No	Yes	Yes
	Hold-Down Switch	No	No	No	Yes	Yes
	Network Connectivity	CAN SAE J1939	CAN SAE J1939	CAN SAE J1939	Ethernet/ProfiNet	Ethernet/ProfiNet
	Web Page	Powered Roll-Up Vehicle Door Page	Utility Truck Bed Covers Page	Utility Truck Body Bed Covers Page	Automated Machine Safety VF Door Page	Laser Protection Roll-Up Door Page

Application Videos

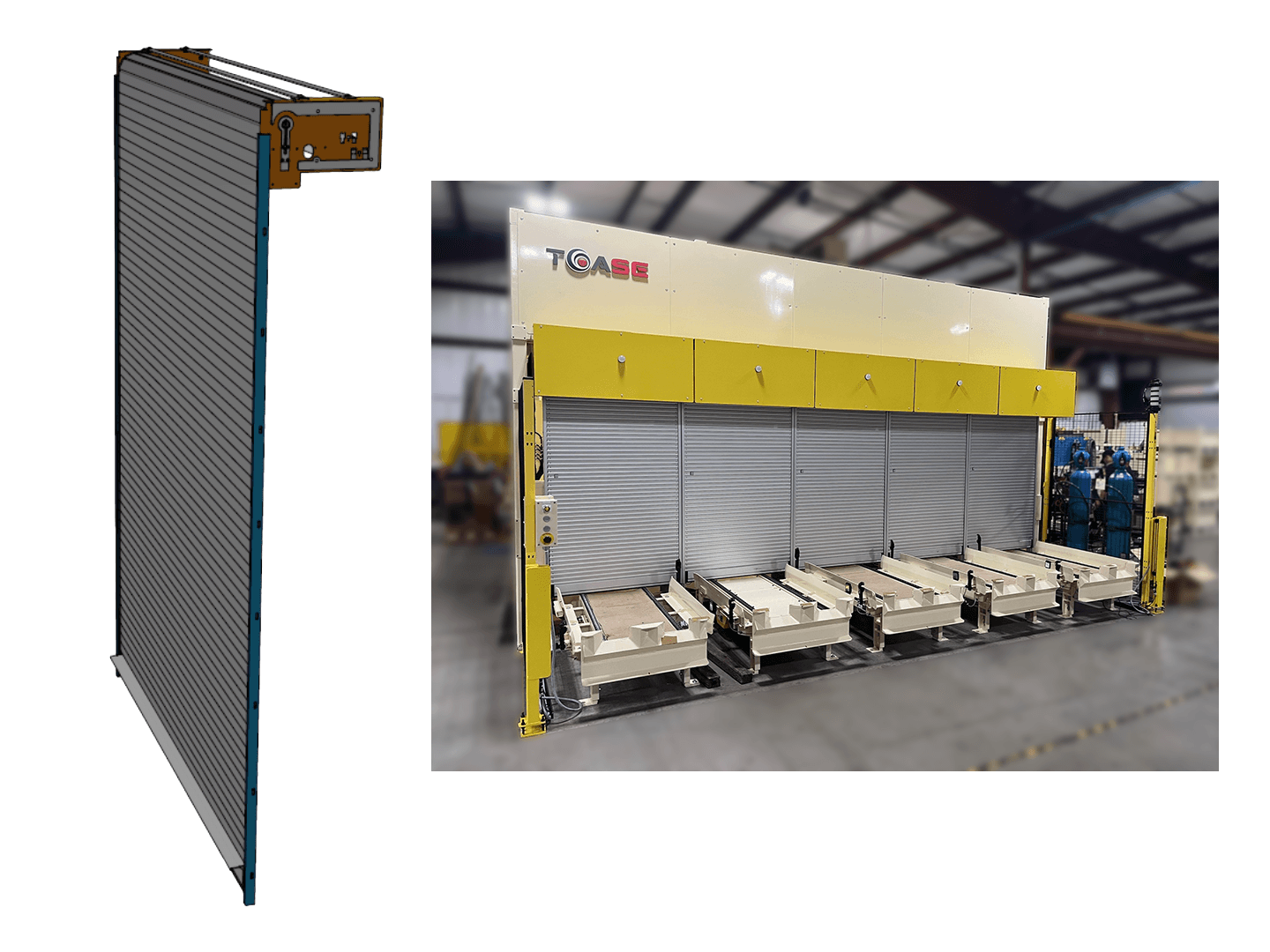

Vertical Powered Roll-Up Door

The configurable low speed doors feature a motor and gearbox integrated into the tube, allowing flush mounting of the door frames. This geometry is ideal for applications where multiple doors are installed side-by-side. This is an ideal alternative to traditional right angle gearboxes and motors that consume space within the door opening or adjacent to the frame. As a standard offering, Dynatect does not provide these doors with freestanding frames. Dynatect can quote custom frames and mounting feet per application needs – as shown in this video.

These fully vertical doors are ~7’ tall (2.1 m) and ~4’ wide (1.2 m)

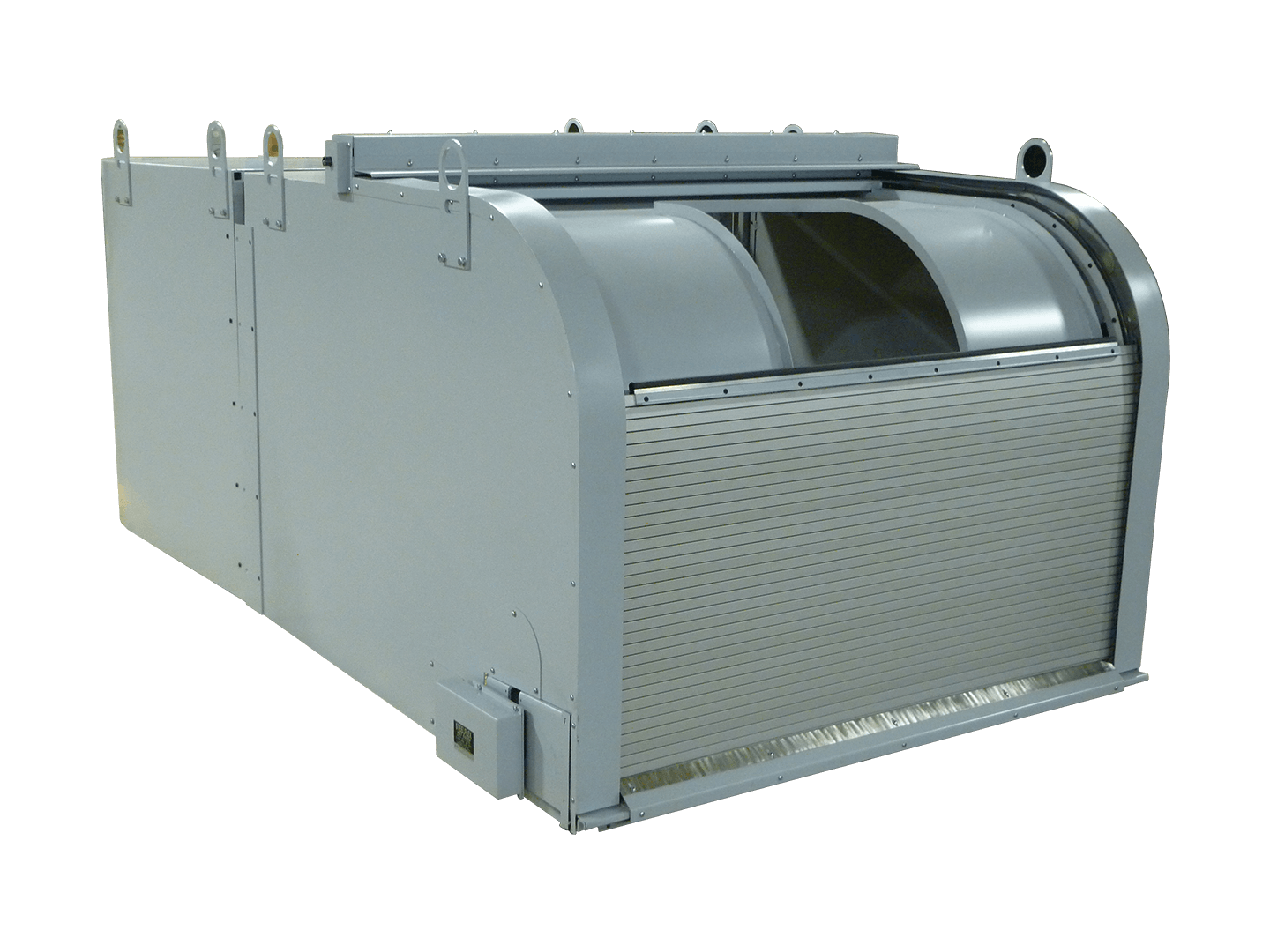

Tambour/Breadbox Powered Roll-Up Door

This video illustrates the motion of a tambour/breadbox style door which doesn’t “roll up” but alternately covers a vertical and semi-horizontal surface. This door is ~4’ (1.2M) high x 4’ (1.2M) wide.

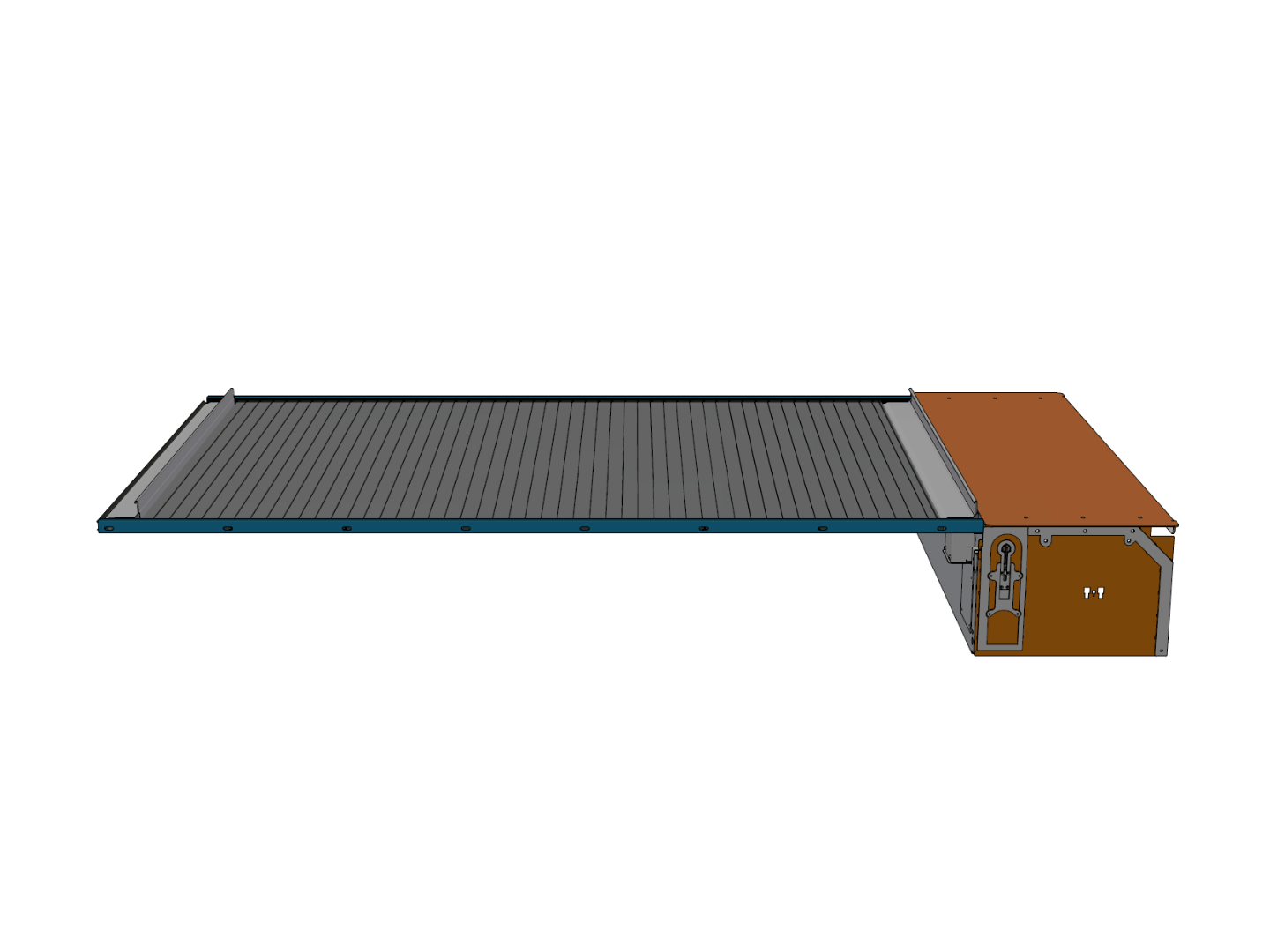

Horizontal Powered Roll-Up Door

The configurable low speed doors can be mounted in multiple configurations. This video illustrates the motion of a fully horizontal door, 12’ long (3.7 m) and ~5’ wide (1.5 m):

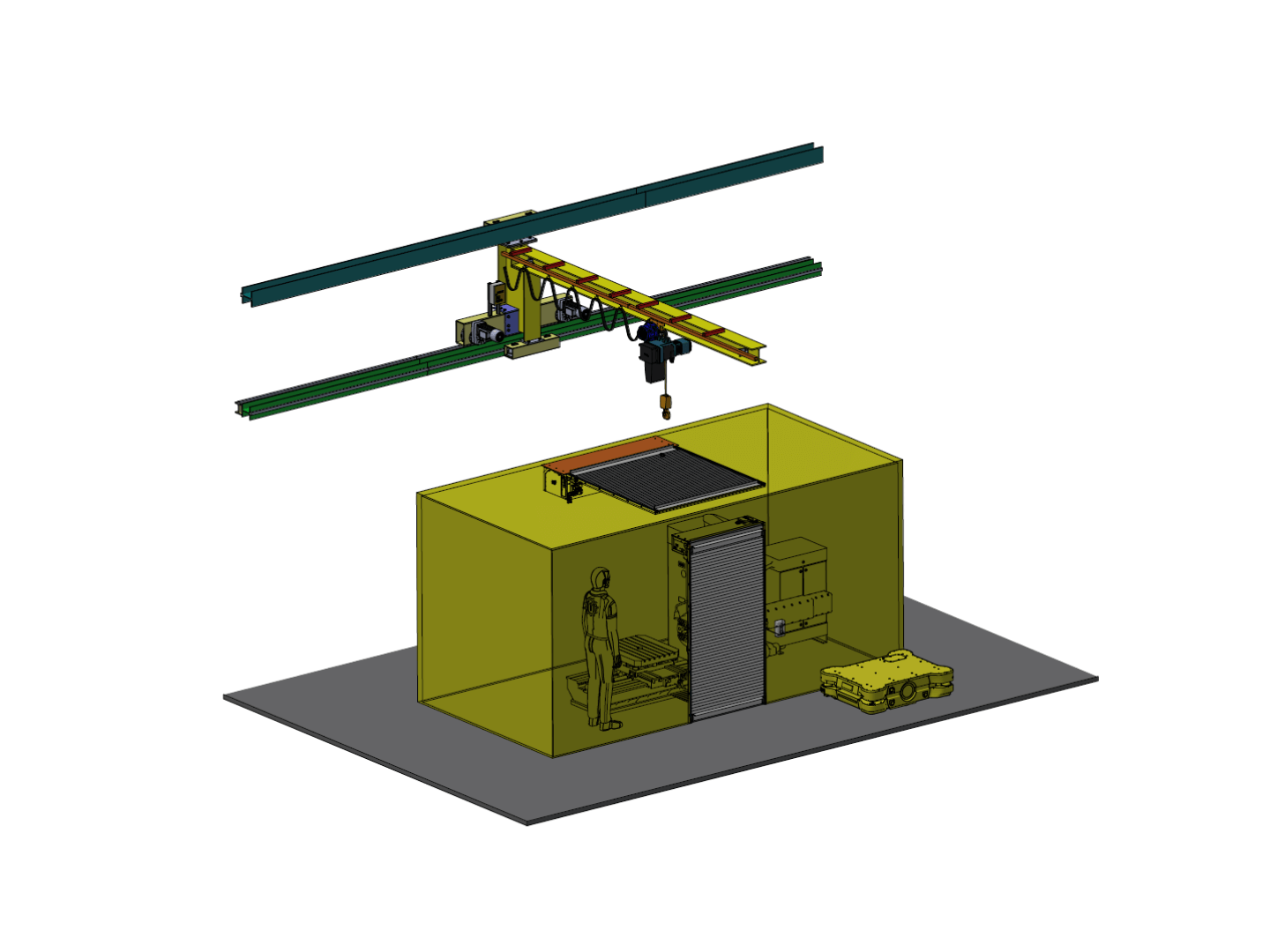

Hybrid Roof Cover Bellows & Roll-Up Door Assembly for Robotic Welding

This custom assembly is a hybrid of a machine rooftop cover and a motorized roll-up door. It was built to contain smoke within a robotic plasma cutting cell. The door covers an opening that is 25 feet wide, 15 feet tall, and 16 feet deep (7.62 meters wide, 4.57 meters tall, and 4.88 meters deep).

Laser Protection Roll-Up Door

Dynatect can combine two well-established technologies of Alumaflex Doors and Gortite Automated Machine Safety Doors (AMSD).

Alumaflex “Type B” double-wall anodized aluminum slats feature a ball-and-socket style configuration that is both strong and light tight.
Gortite Automated Machine Safety Doors feature modular base plates, header and legs specifically designed for large, fast, mission-critical doors. The legs feature guides that accept the Alumaflex door to maintain a light-safe labyrinth.

Related: Dynatect’s laser protection roll-up door

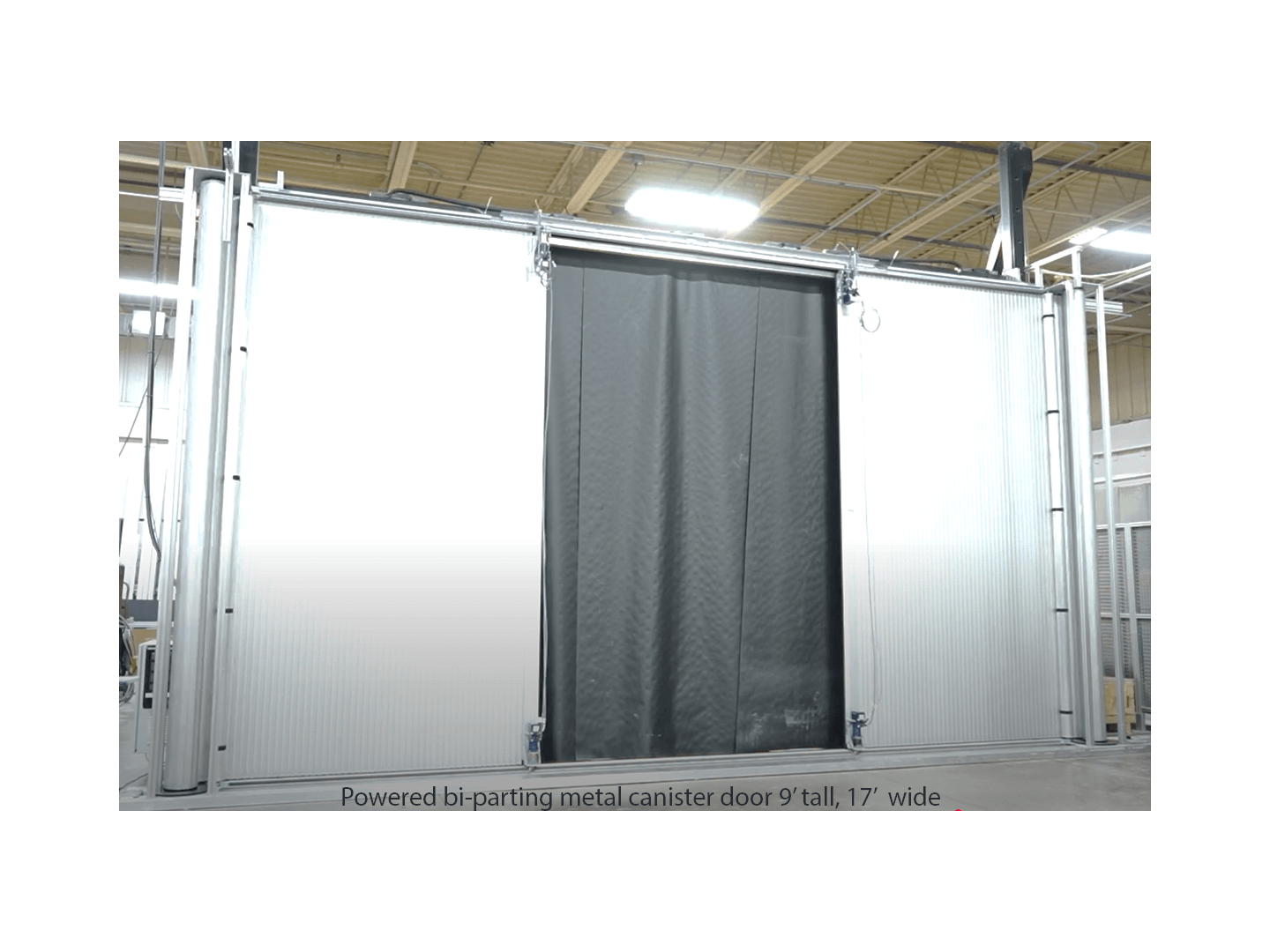

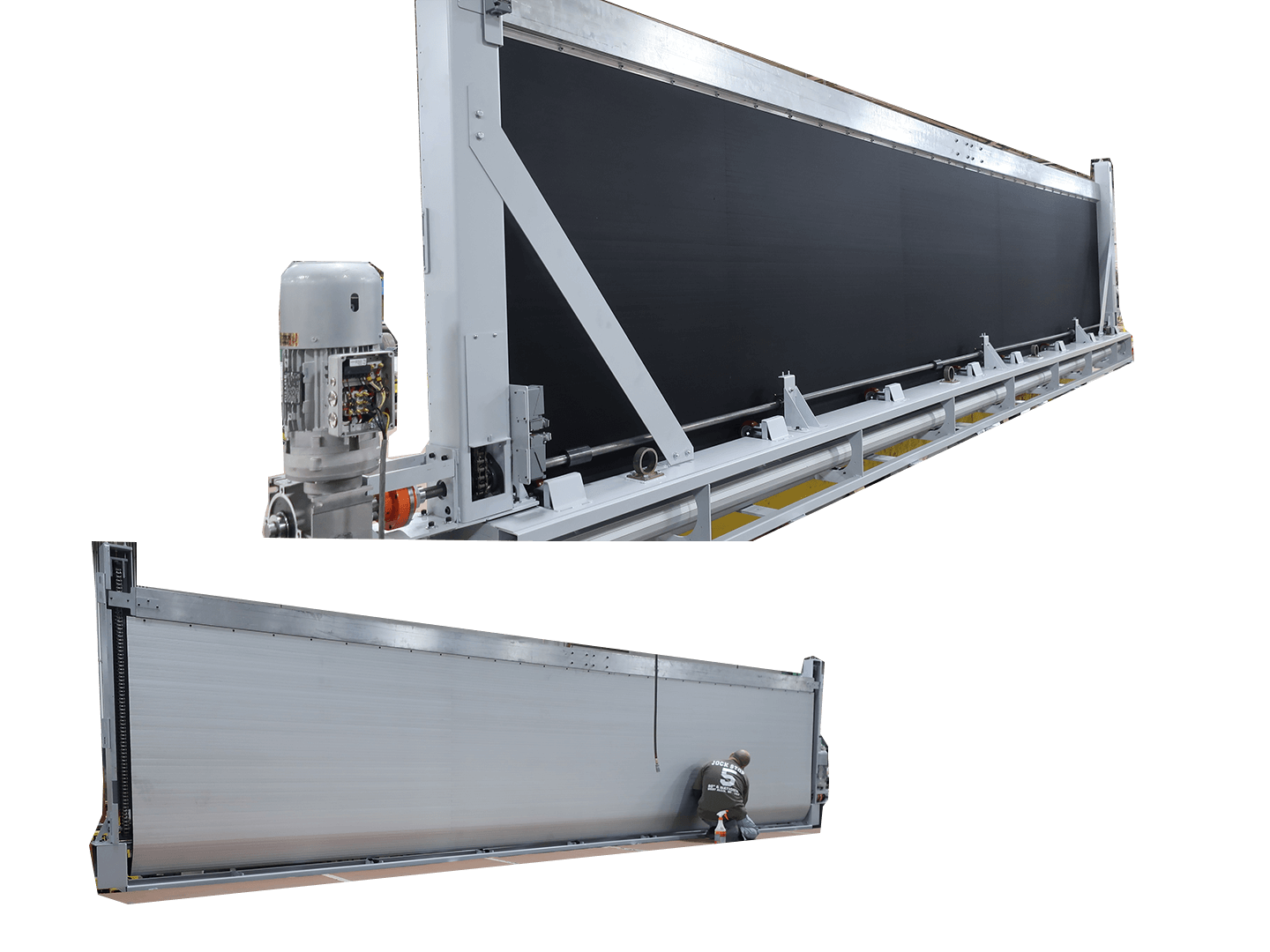

Powered bi-parting metal canister door 9′ tall, 17′ wide

Motorized Steelflex Breadbox Door

This video shows a Steelflex scroll cover that is cog-driven with an electric gear-motor/brake. The shade is 163” wide, 114” long, and made from coiled spring stainless steel which is reinforced with 1.5″ square aluminum tubing. This application shows a breadbox geometry 53” tall by 16” deep. This is an example solution only; many sizes and geometry variants are available.
