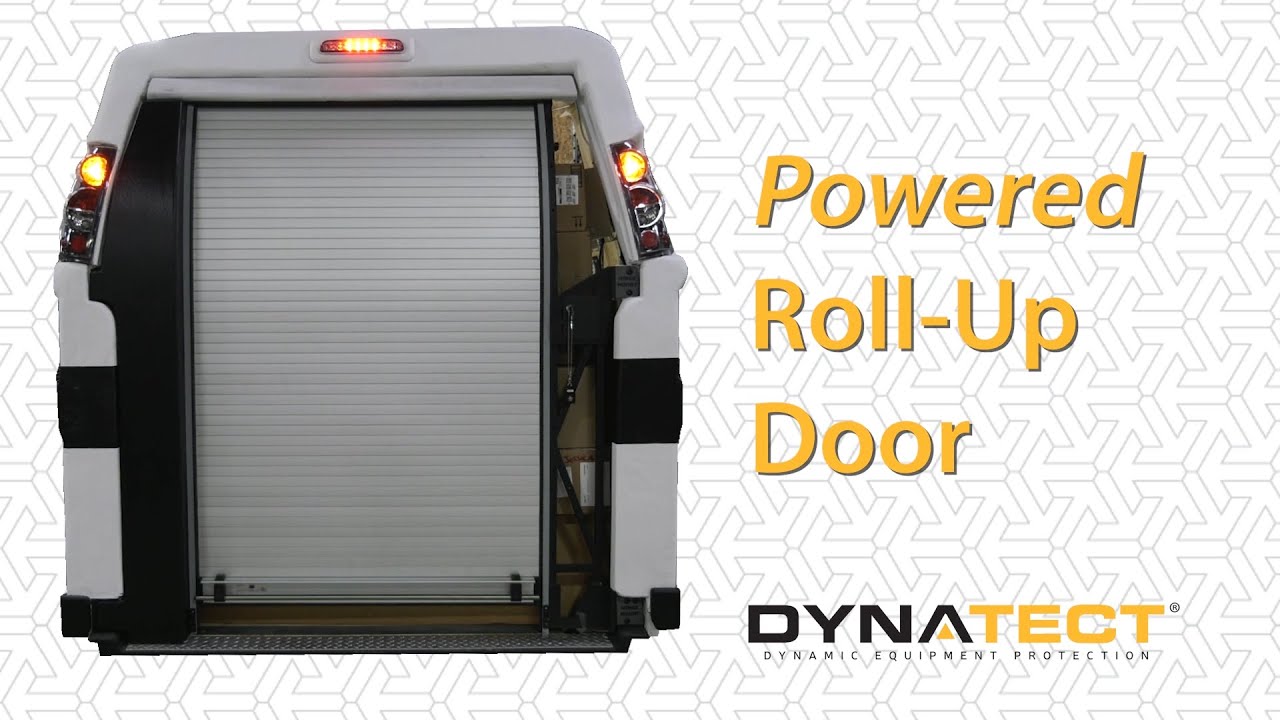

Gortite®

Powered Roll-Up Vehicle Door

For automated access to vehicle compartments and cargo areas

Backed by decades of expertise in doors and automation, Dynatect is proud to offer a cutting-edge powered roll-up door designed to enhance safety, reliability, and security. This innovative solution minimizes doorway obstructions, simplifies installation with no complex wiring, and provides power loss bypass options. Its scalable controller adapts seamlessly, from hardwired inputs to advanced automotive protocols.

Dynatect’s motorized roll-up doors, equipped with remote controls, streamline operations by reducing repetitive motion and accelerating deliveries with automated open-and-close functions. Unlike traditional swing-out doors, which are difficult to automate and require multiple actuators, Dynatect’s solution is efficient and easy to integrate.

Known for their durability, lightweight design, and enhanced security, Gortite doors are the ideal access solution for fire and emergency vehicles, delivery trucks, work vans, and storage containers.

These same doors are used for non-vehicle applications including robotics, automation, and industrial uses. See custom machine barriers.





Request Quote Download Literature

Dynatect’s thin-slatted roll-up doors offer a solution to the growing significance of delivery vehicles worldwide by addressing challenges in three key areas

  1. Overcoming issues faced by electric delivery vehicles
  2. Resolving problems associated with traditional swing-out doors
  3. Mitigating challenges posed by conventional roll-back (garage-style) doors

These innovative doors aim to eliminate or minimize difficulties commonly encountered with various types of delivery van doors, enhancing efficiency and functionality the needs of e-commerce logistics.

Dynatect’s motorized roll-up door can be applied on door sizes up to 81 square feet.

Features / Benefits

Safest Mechanical and Electronic Design

  • 3 simultaneous modes of motion control
    •  Overcurrent sensing for obstruction detection and auto-reverse
    • Hardwire door sensors for open and close
    • Door travel time-out limits
  • Anti-pinch cover shrouds the drive mechanism
  • Positively driven open and close which keep doors from drifting closed when partially opened or on a hill
  • Heat management to support (5) open/close cycles every minute
  • Powered auto-locking located in header, eliminating the trip hazard of bottom mounted locks

Anti-pinch cover diagram

Self-Contained Powered Door Solution

  • Motor/gearbox fits into existing idler tube envelope – no increased footprint
  • Integrated end-of-travel sensors without wiring down the leg of the door
  • Powered auto-locking without wiring down the leg of the door

RUD diagram

Security and Power-Loss Protection

  • Interior manual clutch bypass for door release on power loss (Optional manual release from outside the compartment via keyed interface)

Interior manual door release if power is lost

  • Optional keyed external manual override
  • Optional external manual override via keyed interface

Optional manual release from outside.

Most Versatile Controller

  • Speeds up to ~1 foot /second
  • 12VDC or 24VDC powered
  • Designed for operating environments -40⁰F to +140⁰F
  • Included communications:
    • Hardwire I/O (door-open/door-close)
    • FOB RF remote control
