Safe, fast, and efficient automation for horizontal machine doors
Safe machine door actuators helps protect operators and expensive equipment. The SMDA line from SERVAX offers a complete end-to-end solution with a maintenance-free direct drive motor, a compact controller, and intelligent operating software.
The drive, which is based on proven technology for pedestrian passages, is fitted with a protective function that triggers an immediate change of direction if an obstacle is encountered. SMDA ensures that the force and permissible kinetic energy are compliant with EN 12453, and that EN 14120 is safely maintained.
A retrofit kit is available (SMDS)
Why Automate Horizontal Machine Doors?
The use of automatic door drives in modern machines has increased in recent years. The trend towards automating every possible machine function also includes opening and closing the doors of protective machine hoods. Loading and unloading machines represents a particular source of danger for both the operating personnel and expensive loading robots.
These protective machine door actuators include the technology for implementing a safe force and speed limit for horizontal doors with door weights up to 750 kg and more. This enables safe compliance with the approved forces without requiring additional safety elements such as light barriers or two-handed operation. The drive is fitted with a protective function which triggers an immediate change of direction to prevent irreversible damage if an obstacle is encountered.
The intelligent operating software – SMDTuner – assures efficient commissioning of the drive. Thanks to the integrated AutoTuning, there is virtually no need to perform settings during commissioning. The system is powered by 115/230VAC, features galvanically isolated 24VDC I/O, and has an opto-isolated interface to the machine PLC. The SMDA drives continue to offer valuable support for implementing safe and reliable automated protective doors.
Note: SERVAX is a division and registered trademark of Landert Group AG.
SMDA-200 & SMDA-400/400iB TECHNICAL DATA
Motor Data
Control Data
Connectors
The SMDS retrofit kit is available for both new machines and retrofitting existing machines, for all horizontal door types (lateral/central/telescoping) and door openings widths up to 69″.
Typical installation step-by-step for the Servax Safe Machine Door Actuator (SMDS) Retrofit Kit.

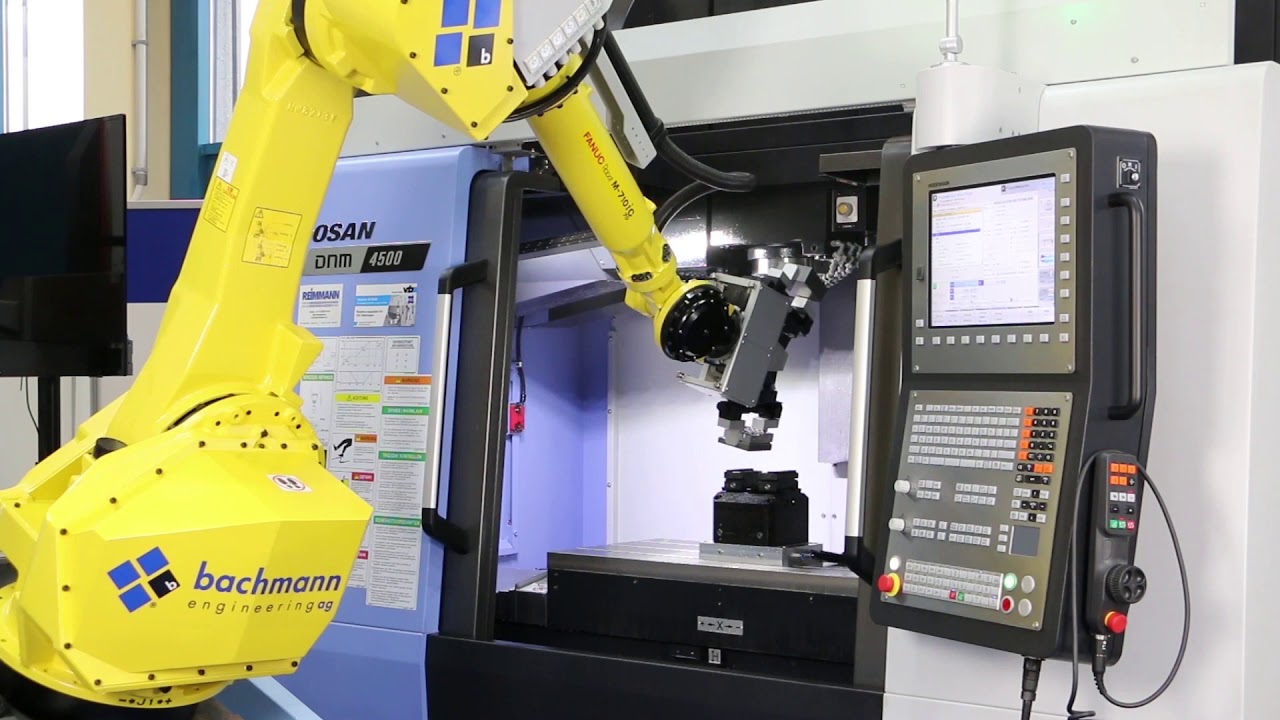

This machine has been retrofitted with a robot and door actuator for automatic loading and unloading of work pieces. The machine door is automated with a protective door drive (unit SMDA-400-iB)
This machine has been retrofitted with a protective door drive (unit SMDA-400-iB) machine door actuator.
Refer to the annotated parts illustration on the right.
Quick and Easy Operating Software: SMDTuner
With the user-friendly SMDTuner operating software, commissioning the protective door is quick and easy. This PC software is used to program the machine door actuator, start up the machine door actuator, query status values, and save the data so that data records already created can be archived for documentation purposes.
The software is easy to use and requires no special training. A wizard guides you through the sub menus in just a few steps. The software lets you individually optimize all SMDA drive types for various door configurations. This reduces costs during commissioning and maintenance.
