Welding Curtains

Dynatect offers portable, modular, and custom roll-up welding screens that are either incorporated into a free-standing base, or integrated into a motorized roll-up door system for an automation cell. For portable or a modular weld curtain system, see the tabs below. Looking for a motorized curtain? See our custom door information.

*Note: Contact Dynatect Mfg. for size options, as they may vary based on market availability.



Request a Quote Download Specs

Features & Benefits

  • Protection against UV radiation during welding. Suitable for MIG, TIG and stick welding
  • Convenient – Set up and breakdown in seconds
  • Easy storage – Uses minimal storage space when shade is retracted due to small profile
  • Light-Weight & Portable – Less than 38 pounds – easy transportation between work stations
  • Durable – Heavy-duty steel construction provides years of use in a manufacturing environment
  • Versatile – Can be used for work cell separation, as a privacy wall to block distracting views, or to aid in the containment of sawdust or other light debris
  • Customizable – Alternative shade and base colors can be custom ordered

Specifications

  • Shade width: 74.5” (1892 mm); Height: 72.00” (1829 mm)
  • Canister length: 77.88” (1978 mm), Width: 7.66” (195 mm)
  • Retracted height: 4.88” (124 mm)
  • Weight: 37.5 lbs. (17 kg.)
  • Shade material: 0.014” PVC film, dark green or yellow (Alternative shade and base colors can be special ordered)

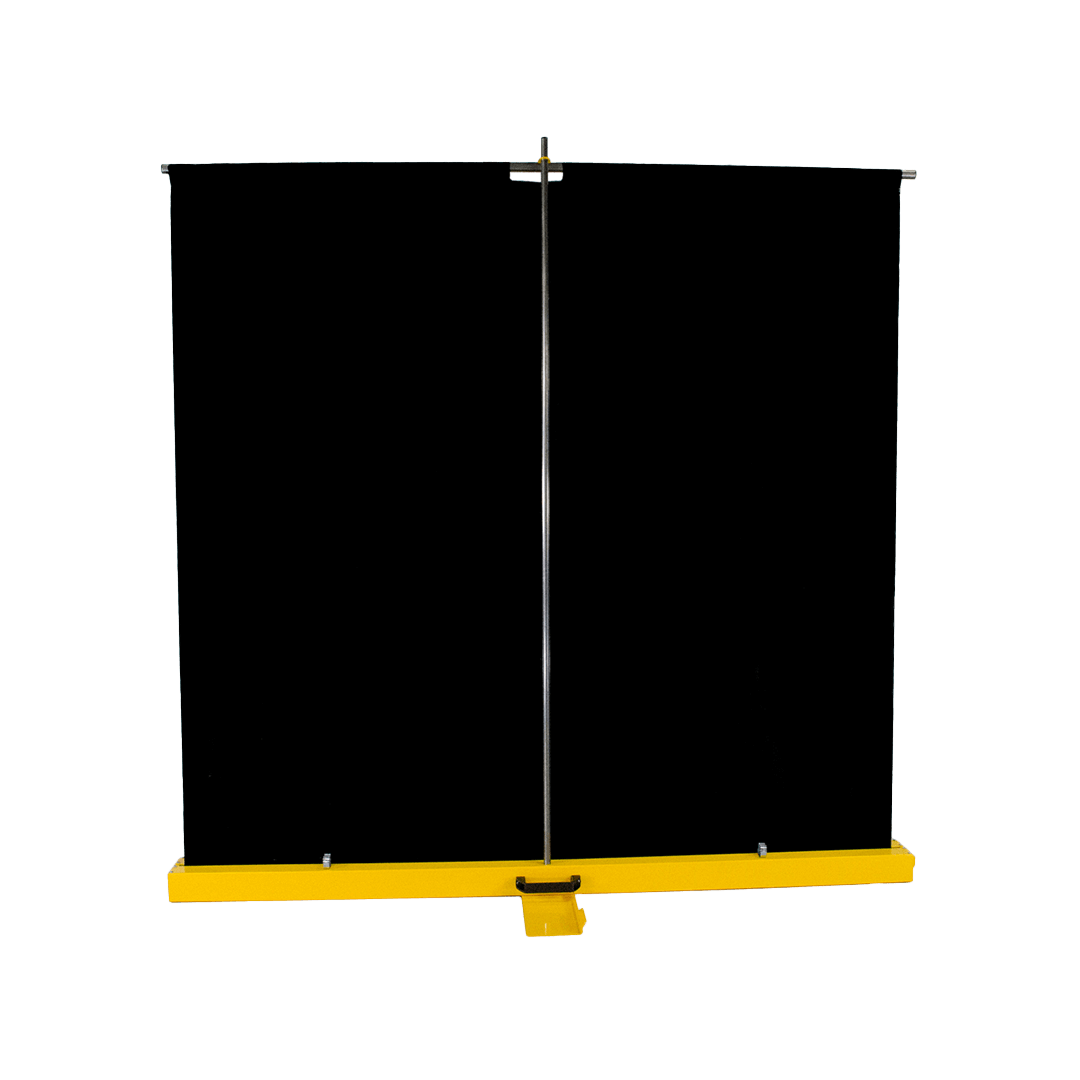

Video: Portable Weld Curtain Set-Up

With set up and break down in seconds, Dynatect’s portable weld curtain can be easily transported to new working stations.  Heavy-duty steel construction provides years of use and steel outriggers create a stable base with a high-visibility safety finish. The 2nd generation portable weld curtain features a replaceable shade and a streamlined canister that is ideal for deploying multiple units.
