Nylatrac®

KO Series Cable Carriers

The KO series is our smallest standard plastic link.  Excellent for robotics, pick-and-place and light industrial applications.

  • Inside Width: 0.28″ to 1.42″ (7 to 36 mm)
  • Inner Height: 0.28″ to 0.71″ (10 to 38 mm)
  • Mounting Height: 1.57″ to 6.38″  (40 to 162 mm)
Request a Quote Download Specs

Product Details

Weight Load Chart

  • Find the weight you want to put in the cable carrier on the left side of the chart (additional load).
  • Then follow that row across until you get to the maximum unsupported length line.

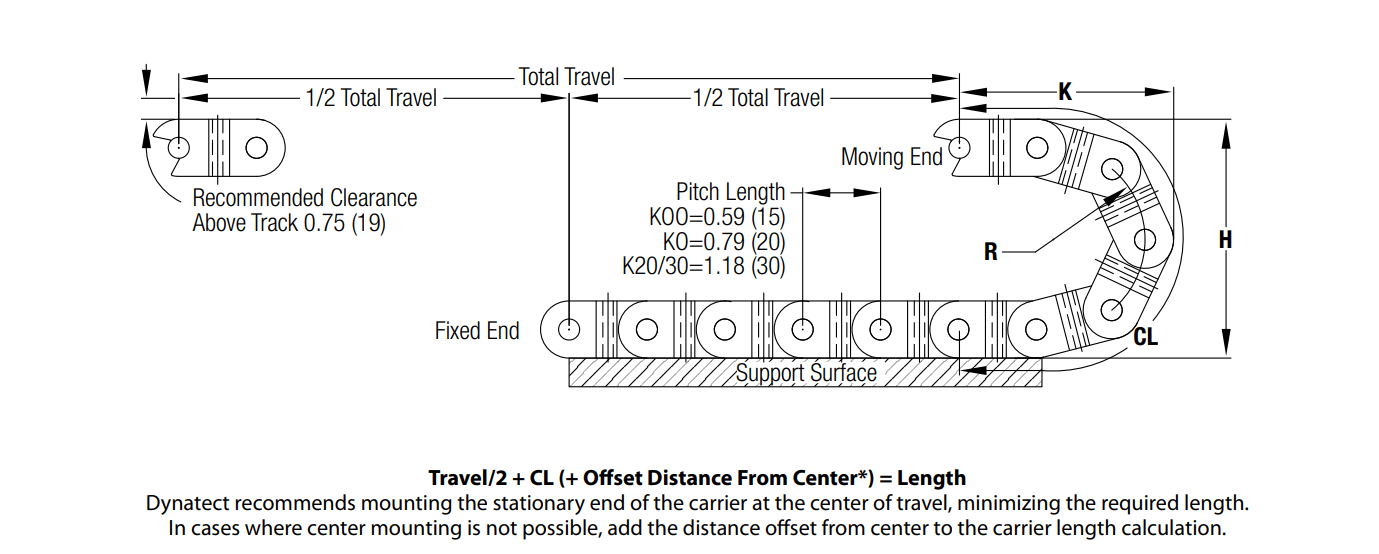

  • Unsupported length (a.k.a. unsupported span) is the maximum distance possible between the moving end mounting bracket and the topmost link of the curve.
  • For a standard cable carrier mounted with the fixed end at center of travel, this length is 1/2 the system travel + 1 link pitch.
  • This length can be greater or shorter if the fixed end is offset mounted from the center of travel.
  • Using the load chart below, for example: an additional load of 5 lbs./ft can have a maximum unsupported span of ~8.5 ft.

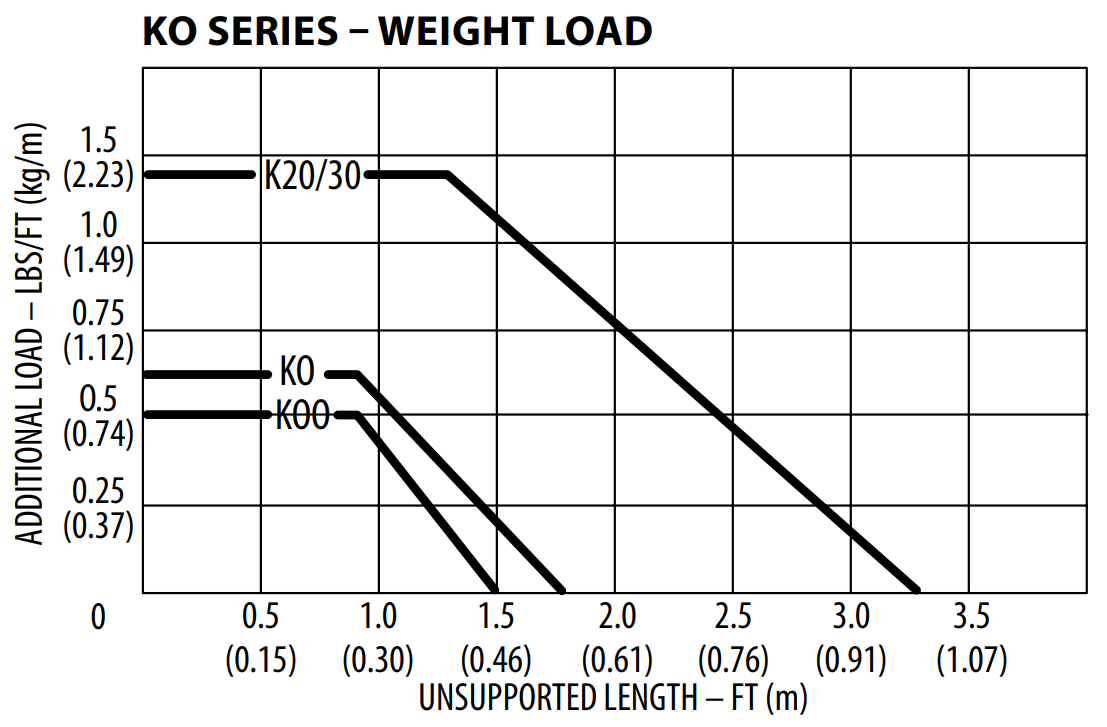

KO Series Weight Load Chart
