Gortrac XL (6/8/10) Series cable carriers

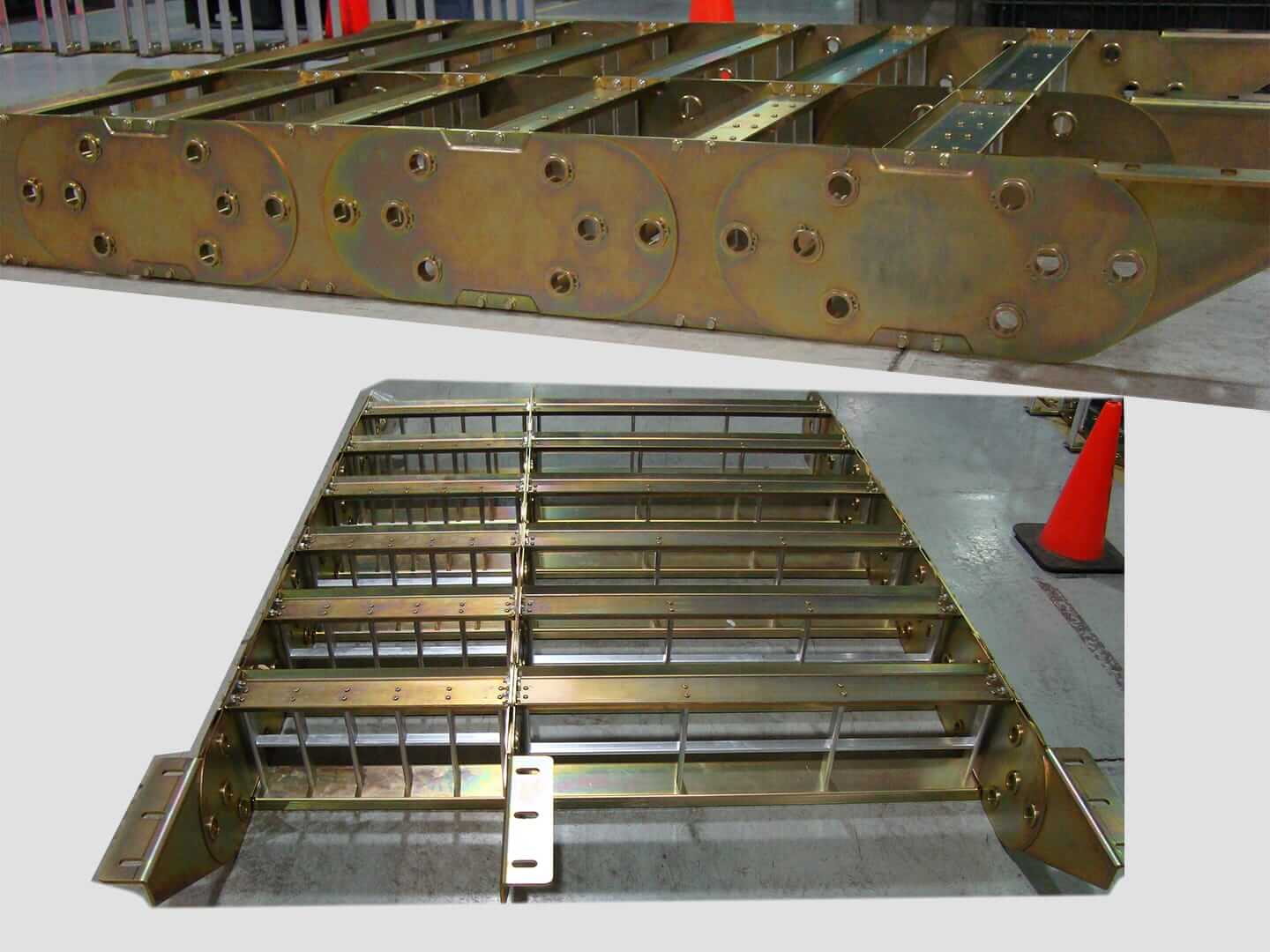

Gortrac Model XL10 cable carrier in stainless steel with formed steel channel bars and aluminum cavity dividers
Customized Gortrac XL10 steel cable carrier with formed channel crossbars and cavity dividers
Gortrac®
Gortrac XL10 is an extra large steel cable carrier with a 9.84” (250 mm) link height and an extra heavy-duty link design for managing heavy hoses and cables. Choose from three curve heights from 48” to 80” (1219 to 2032 mm). Note: Dynatect has made larger custom link sizes from 12” to 24” as occasionally required for special applications.
Foundry equipment, metal manufacturing equipment, and other heavy-duty industrial (e.g. marine, aerospace machining, paper converting, blow molding).
Weight Load Chart
How to Create a Part Number: Model – Crossbar Style – Bar Width – Height – Separators – Length – Bracket (fixed) – Bracket (moving)
Example: XL10-AF-5.25-530-1-132.84-#2IN-#3OUT
Crossbar Styles:
Carrier Cross Section View
Carrier Side View
How to Specify Brackets
Specify both bracket arrangement # and direction of mounting holes. Mounting holes can be inward (IN) facing or outward (OUT) facing.
Example: #1 arrangement and inward facing holes = #1-IN
Example: #4 arrangement and outward facing holes = #4-OUT
Standard Mounting Bracket Arrangements
The arrows point to the mounting surfaces of the chain, which are the flat areas on either side of the chain that are used to secure it to a machine or piece of equipment. These surfaces are part of the brackets or flanges (also known as mounting brackets) that are attached to the chain.
The bracket configuration number is the same for both ends of the chain and identifies the relationship between the mounting surfaces of the brackets and the curve of the chain.
Bracket Flange Mounting Hole Location
Bracket Mounting Hole Dimensions (Top View)
Dimensions are listed as: inches [millimeters] unless otherwise noted
A = Cavity Width (bar/inside width)
XL6 Model 6″ Cable Carrier
Large, heavy-duty metal cable carrier with a 5.91” (150 mm) link height and unsupported span up to 30’ (9.1 m). Enclosed design available by selecting aluminum armor plate option.
XL8 Model 8″ Cable Carrier
Large, heavy-duty steel cable carrier with a 7.87” (200 mm) link height and unsupported span up to 35’ (10.6 m)
Metal Carriers Quick Selection Guide
Cable Carrier Design Guide
Cable Carriers RFQ Online
Cable Carrier RFQ PDF
Cable Carrier Long Travel Application Brochure
Cable Carriers for Overhead Cranes
Rotational Cable Carrier Applications
How to Size Your Carrier
Cable and Hose Carrier Installation
Cable Carrier Preventative Maintenance & Tips
Cable Carrier Accessories
Cable/Hose Clamping & Strain Relief
Cable and Hose Distribution Guidelines
Cable Carrier Terminology
