Gortrac®

XL8 Model 8″ Cable Carrier

Gortrac XL8 is a large steel cable carrier with a 7.87” (200 mm) link height and an extra heavy-duty link design for managing heavy hoses and cables. Choose from five curve heights from 29” to 80” (737 to 2032 mm).

Request a Quote Download Specs

Product Details

  • Extremely robust link design for maximum strength and stability.
  • All steel components are plated zinc-dichromate for corrosion-resistance.
  • Crossbar width is customer-specified.

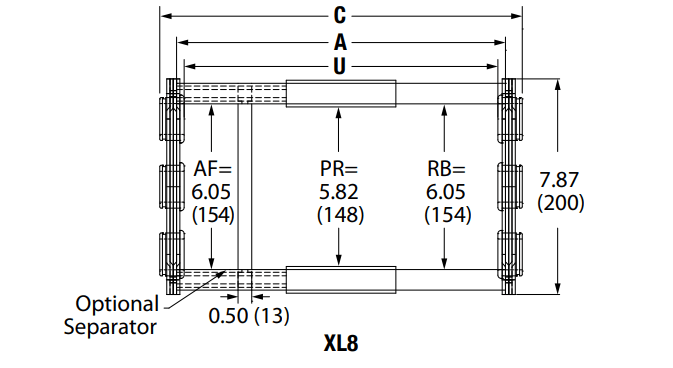

  • Multiple crossbar options available, each with optional compartment separation/dividers:
    • Bolted aluminum round bar (RB) with optional PVC poly rollers (PR)
    • Bolted aluminum flat bar (AF) for better protection against cable/hose wear
    • Custom steel flat bars or machined crossbars
    • Window extenders for extra interior space

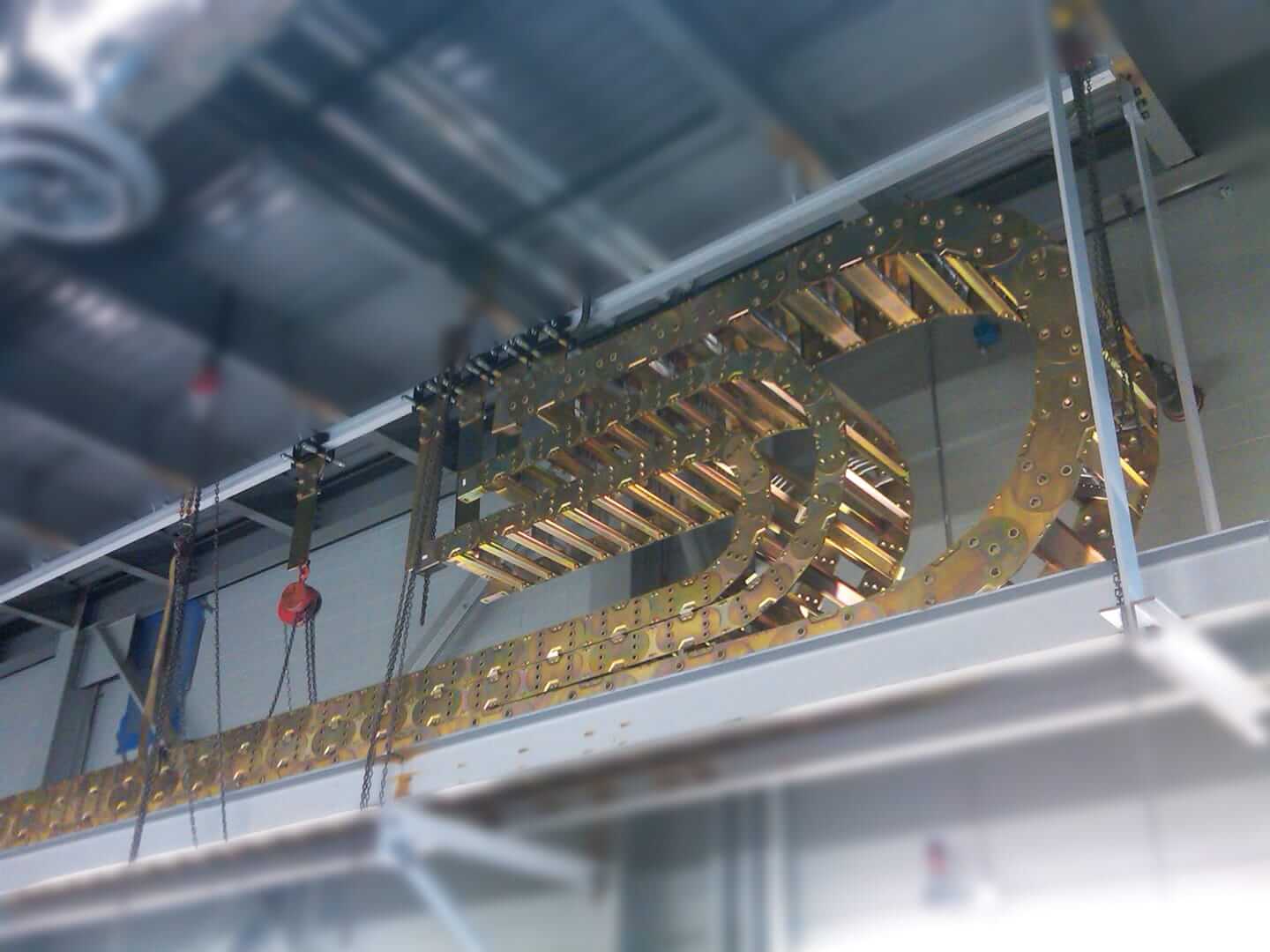

  • Applications: foundry equipment, metal manufacturing equipment, and other heavy-duty industrial (e.g. marine, aerospace machining, paper converting, blow molding).

Weight Load Chart

  • Find the weight you want to put in the cable carrier on the left side of the chart (additional load).
  • Then follow that row across until you get to the maximum unsupported length line.
  • Unsupported length (a.k.a. unsupported span) is the maximum distance possible between the moving end mounting bracket and the topmost link of the curve.

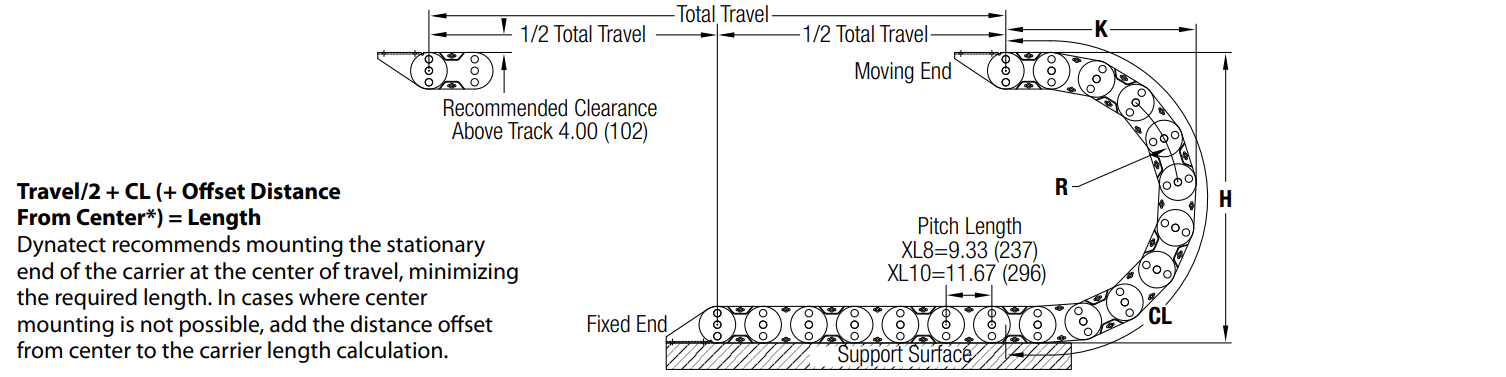

  • For a standard cable carrier mounted with the fixed end at center of travel, this length is 1/2 the system travel + 1 link pitch.
  • This length can be greater or shorter if the fixed end is offset mounted from the center of travel.
  • Using the load chart below, for example: an additional load of 20 lbs./ft can have a maximum unsupported span of 25 ft.

XL Series Weight Load Chart
